DCW Medium
Safe water disinfection for buildings and industry

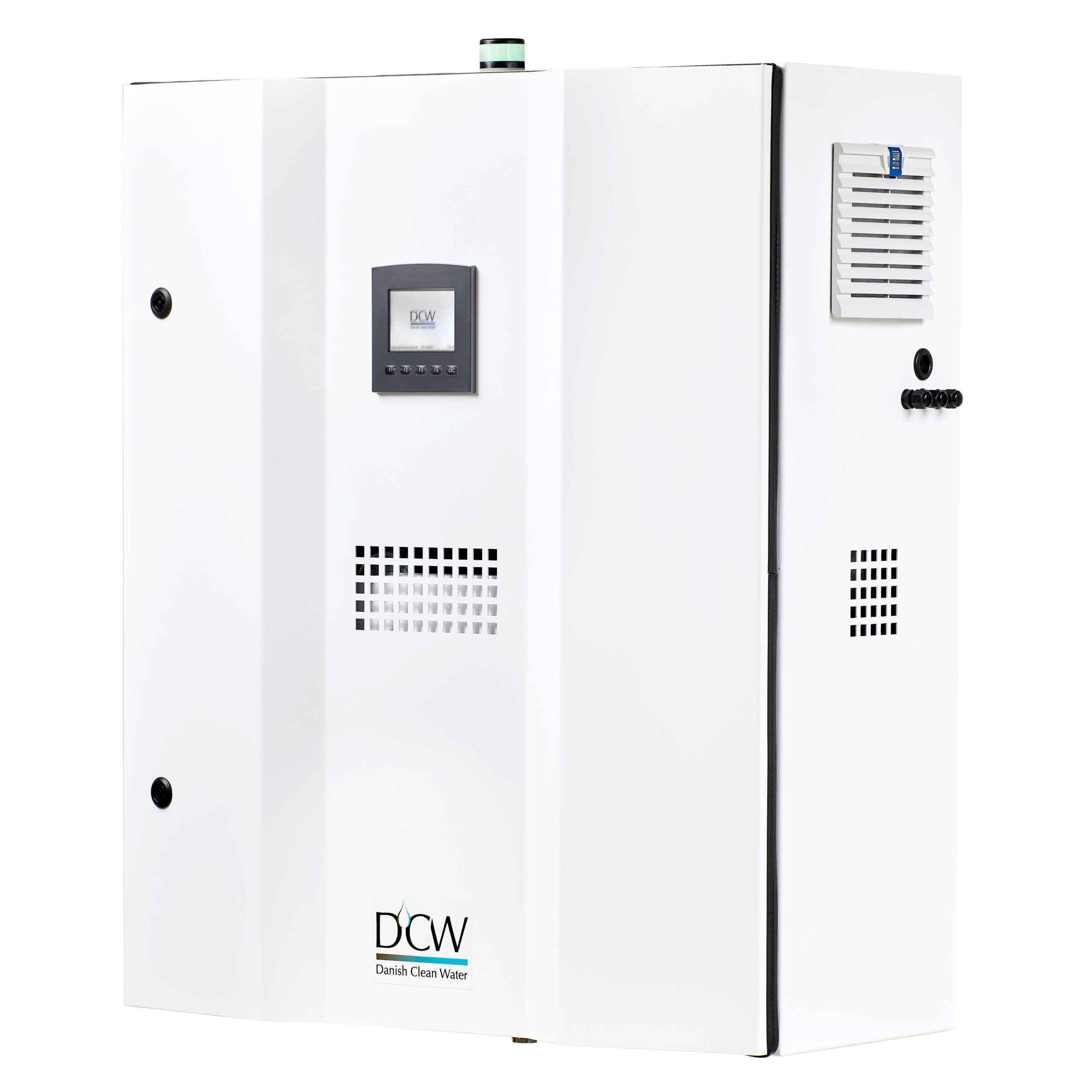

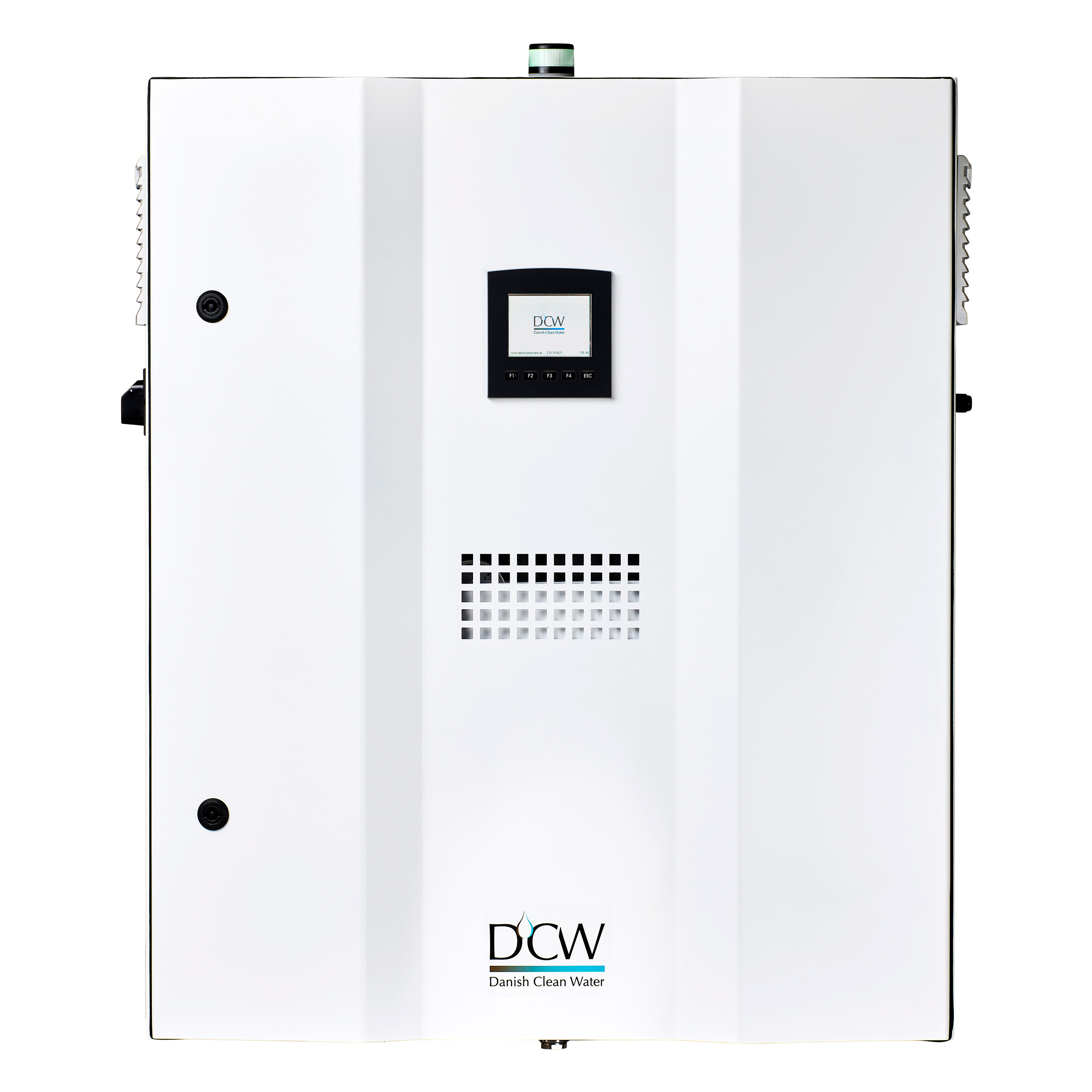

The DCW Medium is a flexible water disinfection unit designed for medium to large-sized water systems. It produces the disinfectant Neuthox® on-site using only salt, water and electricity and helps control bacteria and biofilm without hazardous chemicals.
The unit is used in applications such as cooling towers, process water, domestic water and livestock water systems, where reliable and safe operation is essential.
Automated solution. High effect. Safe operation.
Suitable for many water systems
The DCW Medium unit is suitable for a wide range of water applications that require effective disinfection, stable water quality and safe operation. Explore some of the most common applications below.
Domestic water systems
Control Legionella and biofilm in hot / cold building water systems.
Industrial cooling towers
Replace hazardous chemicals and achieve safer and more stable operations.
Industrial process water
Improve hygiene and achieve safer operations with lower costs.
Livestock water
Improve animal health and performance through cleaner drinking water.
Couldn't find your area?
Our units can be used in many different water applications. Contact us to discuss the possibilities in your specific area.
Why choose DCW Medium?
Highly effective
- Controls harmful bacteria, biofilm, algae, mould and fungal spores
- Maintains stable water quality throughout the system 24/7
Safe operation
- Replaces hazardous chemicals with a mild, water-based disinfectant
- Improves safety for operators and users
Low total costs
- Reduces operating and maintenance costs
- Helps save energy via biofilm control and lower water temperatures
Easy and automated
- Operates automatically with only salt refills and two annual services
- Integrates easily into existing water and control systems
Sustainable choice
- Produces disinfectant on-site from just salt, water and electricity
- Eliminates chemical transport and reduces your CO₂ footprint
Case: Documented results from Danfoss
Cleaner cooling water and higher uptime
The global engineering company Danfoss has used DCW units on cooling towers for more than 10 years, replacing strong chemicals while achieving extremely clean cooling water and eliminating production shutdowns caused by biofilm.
Documented safety
Neuthox is classified as non-hazardous according to EU regulation, which means:
- No personal protective equipment is required
- It is not flammable
- No hazard pictograms are needed
How much water can DCW Medium treat?
The table shows the approximate amount of water that each DCW Medium T15 model can treat per day in typical applications. The first column shows the unit's Neuthox production capacity in litres per hour (l/h), while treated water capacity is shown in cubic metres per day (m³/day). Actual capacity depends on the specific application and the required dosing level.
Contact us to discuss your needs| Neuthox production 500 parts per million (ppm) |
Domestic water 0.5–5 ppm dosing |
Process water 0.5–2 ppm dosing |
Livestock water 5 ppm dosing |
|---|---|---|---|
| 30 l/h | 60–600 m³/day | 150–600 m³/day | 60 m³/day |
| 40 l/h | 80–800 m³/day | 200–800 m³/day | 80 m³/day |
| 50 l/h | 100–1,000 m³/day | 250–1,000 m³/day | 100 m³/day |
| 75 l/h | 150–1,500 m³/day | 375–1,500 m³/day | 150 m³/day |
| 100 l/h | 200–2,000 m³/day | 500–2,000 m³/day | 200 m³/day |

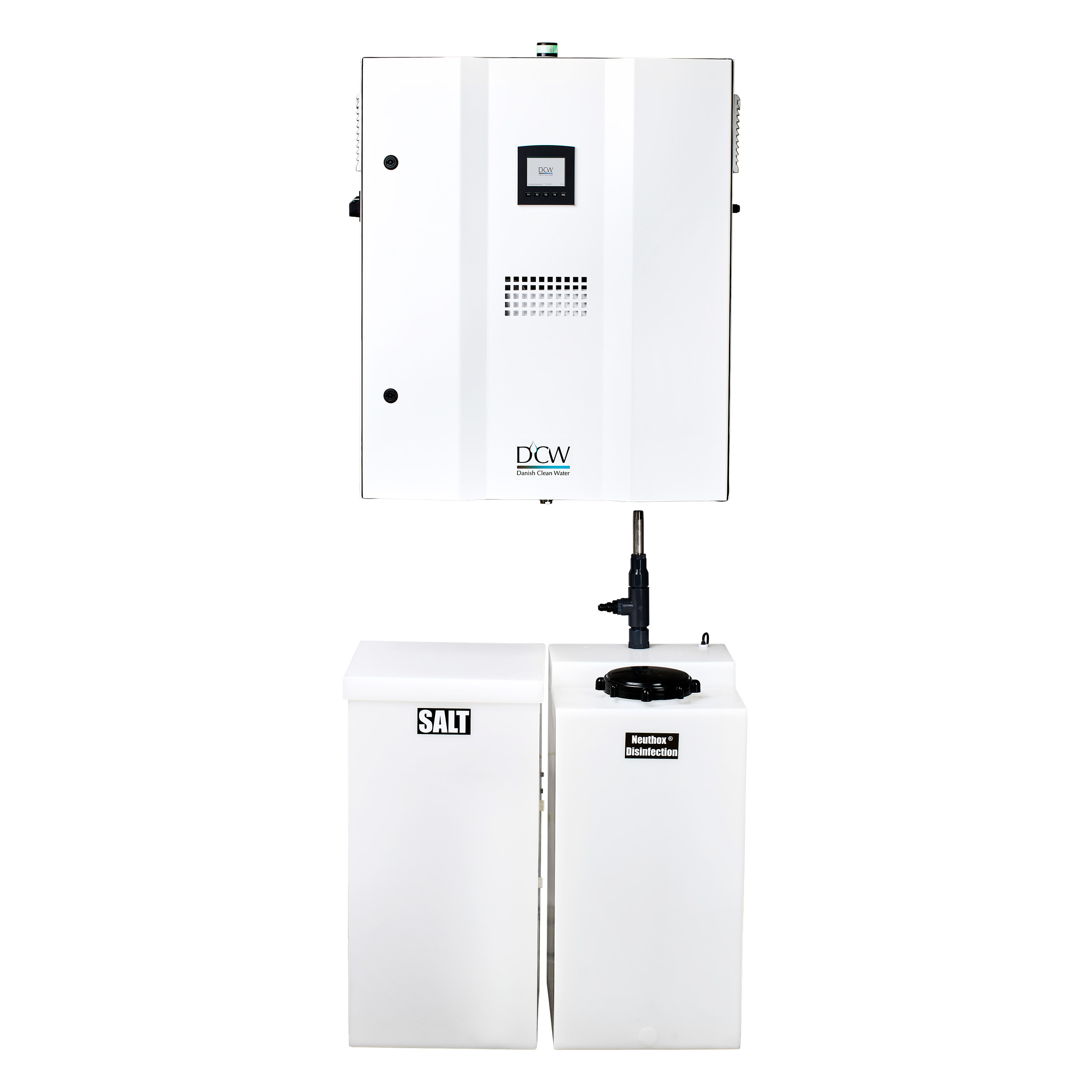

The treated water capacity is based on 20 hours of Neuthox production per day. Neuthox is stored in a tank to ensure continuous dosing and protection 24/7.
Cooling towers
The capacity requirement for cooling towers is calculated differently because water continuously evaporates and part of the water is discharged from the system. The table below provides an indication of the recommended Neuthox production capacity for different cooling tower sizes.
| Neuthox production | Cooling tower size |
|---|---|
| 30 l/h | 900 kW |
| 50 l/h | 1,500 kW |
| 75 l/h | 2,000 kW |
Larger cooling towers may require a DCW Large unit.
Technical specifications
The table provides an overview of the key technical specifications for the five DCW Medium T15 models.
| Specifications | T15 Standard (STD)* | T15 Low Chloride (LC)* | |||
|---|---|---|---|---|---|
| Neuthox production capacity | 40 l/h | 100 l/h | 30 l/h | 50 l/h | 75 l/h |
| Free active chlorine | 500 ppm | 500 ppm | 500 ppm | 500 ppm | 500 ppm |
| pH value | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Chloride in Neuthox ±10% | 3800 mg/l | 3800 mg/l | 1700 mg/l | 1700 mg/l | 1700 mg/l |
| Approx. salt consumption | 5.7 kg/day | 16.7 kg/day | 3.0 kg/day | 4.6 kg/day | 7.2 kg/day |
| Power consumption | 660 W (0.7 kW) |
1500 W (1.5 kW) |
684 W (0.7 kW) |
996 W (1.0 kW) |
1308 W (1.3 kW) |
*DCW Medium is available in both Standard (STD) and Low Chloride (LC) versions. The LC version is developed with a lower salt content to protect against corrosion in primarily closed water systems. We help determine the most suitable version for each installation.
Download full datasheet

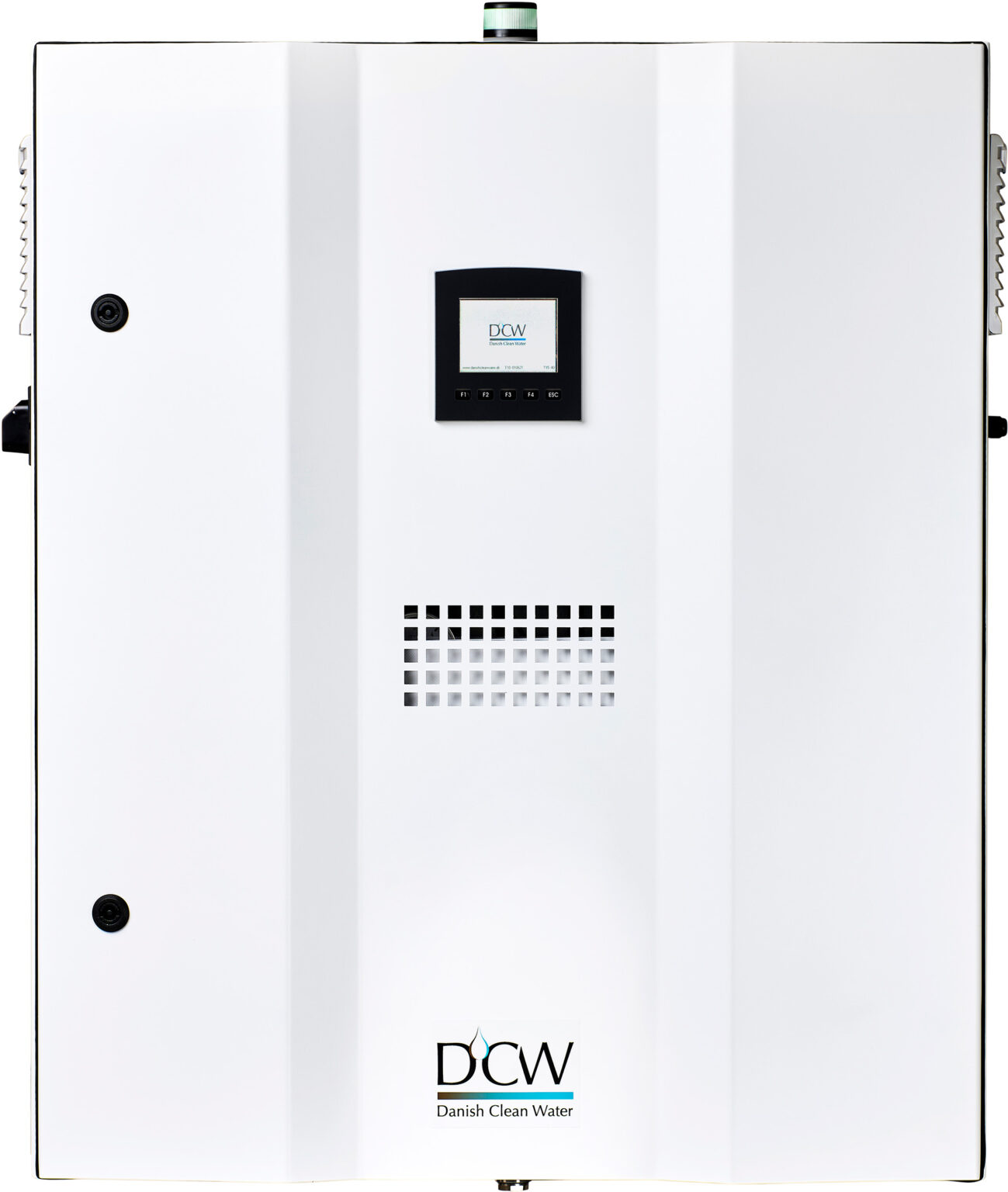

Cabinet dimensions: 710 (W) × 840 (H) × 310 (D) mm
Learn more
Flexible purchasing options
DCW Medium is available for purchase, lease or rental depending on your operational and financial needs.
Contact us
Service and support
We support you throughout the entire process – from selecting the right solution and getting it installed to training, service and ongoing support.
Learn more
How our technology works
Explore how our electrolysis technology produces Neuthox and why the disinfectant is highly effective.
Struggling with bacteria, biofilm or hazardous chemicals?
DCW Medium helps keep water safe, simplify operations and reduce total costs across a wide range of water applications. Contact us today to discuss the right solution for your system.
